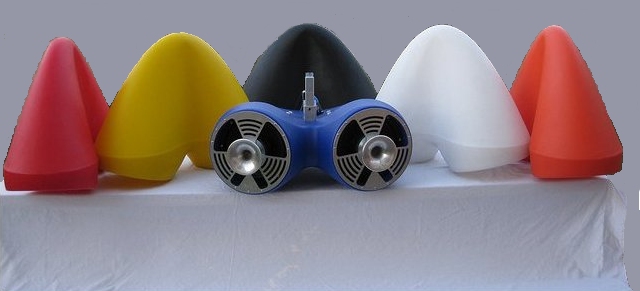

Egg and Wing Shaped Loudspeaker Enclosures

                          Same Wall Properties at same thickness as MDF or Plywood!  But Curved.

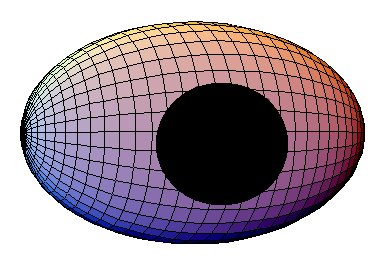

Sonic improvements of a spherical cabinet but a more pleasing "look" for the Consumer

Unlimited Shapes and Finishes                                                         Sizes to 240" long

Our Design Studio Originated the Multi Driver EGG-SHAPED  PARABOLIC loudspeaker enclosures

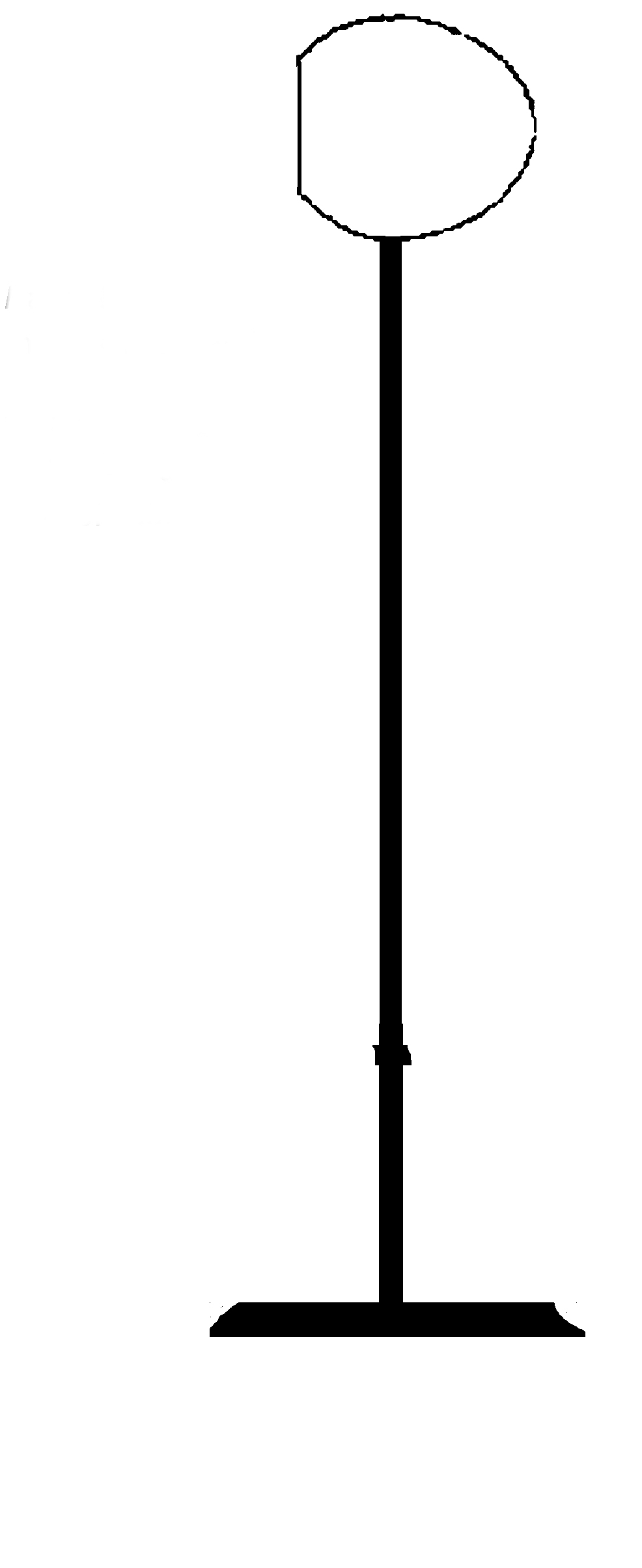

Stands:  Designed and available for Egg & Wing-Shaped Cabinets.  Custom Stand designs for these shapes are also available Via our Design Studio for OEM mass-manufacturing.

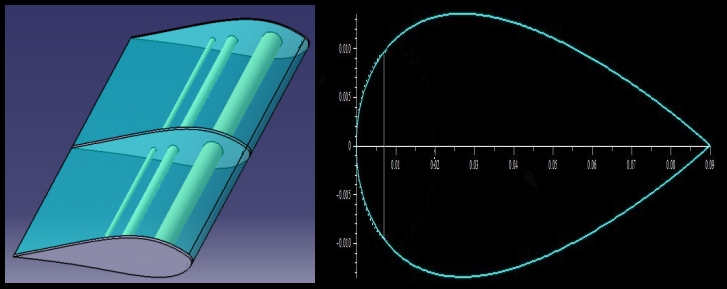

Our Design Studio also developed the revolutionary FLOOR-STANDING WING-SHAPED curved loudspeaker enclosure.  See the PEGASUS image at the bottom of this page


THE PEGASUS
The 1997 Pegasus Proof-Of-Concept 3-Way OEM mass-manufacturable curved floor standing design






Pioneer's Technical Audio Devices in 2015 has the exact same Wing / Pegasus cabinet shape US Enclosure developed and published in the late 1990's. One of their designer's here in the US that we will call "A J " has been on our email list for over Ten Years.  They never asked for a manufacturing quote even though our manufacturing plant is 20 miles away from their USA HQ and our cabinet materials are much better than what they are using.   "Emulation" by company like Pioneer can be viewed as a Compliment (even without the money).



Column PA Loudspeaker Cabinets



Column Loudspeakers are designed around voice coherence and intelligibility.    Consequently, these units are among the strongest candidates for diffraction reducing cabinets.



Yet, no company produces cabinets with shapes which will reduce diffraction in the frequencies column loudspeakers are focused on.


The August 2017 Live sound Magazine article titled "Expanding Horizons" has 22 featurettes of Column PA Sound Systems from 21 manufacturers.  The following picture emerges of "typical" Column PA units, as follows.  Not all systems use all driver types listed.

Cabinet Width of 5 to 6 inches
Driver Type
Driver Quantity
Driver Diameter



High
11
1 inch
Midrange
13
4 inch
Full Range
13
3 inch
Low
7
6 inch
usually in a larger bottom cabinet


US Enclosure suggests the following design changes to improve diffraction levels:

For Diffraction Reduction purposes, from the front, the unit would look like a tube.


We recommend from the top view cabinet shape geometry named “Moss's Egg” but many other curved shapes could be used. The flat side on the top-view image would be about 4 to 6 inches wide and the shape could be widened toward the bottom of the cabinet for low frequency drivers while maintaining a curved shape.


With a 5” wide front, using the Moss's Egg geometry and a tube shaped front-view the diffraction effects would be lowered or eliminated down to 338 Hz.  Compare to a 0.25 radius corner, has little effect on diffraction due to the flat panels but ought to eliminate diffraction above 5700 Hz.
