Loudspeaker, Radio, and Television Cabinet Designs from the past
... and More




Reddy Kilowatt

Kilowatt reminisces about:
Radios with unique design, Loudspeaker cabinet developments by decade,
and the earliest Television sets and camera's




LOUDSPEAKERS


1927 RCA Model 100a

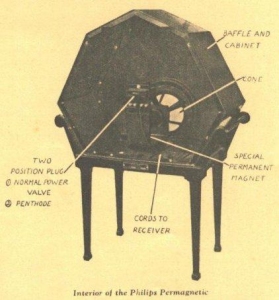

1929 Phillips loudspeaker cabinet-- did not use a back wall






1937 Jensen- first commercial Bass Reflex Cabinet

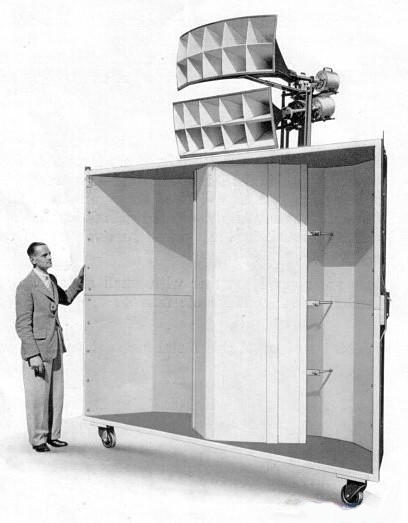

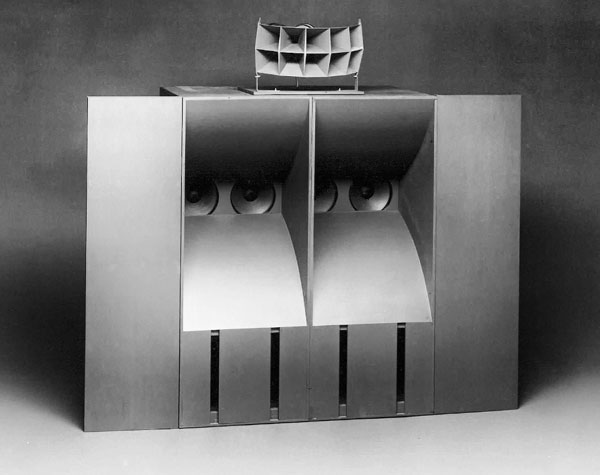

                                               Altec                                                                        Western Electric



Ormand 1930's Art Deco Loudspeaker Cabinet




Phillips 1930's Loudspeaker



Phillips 1930 Loudspeakers

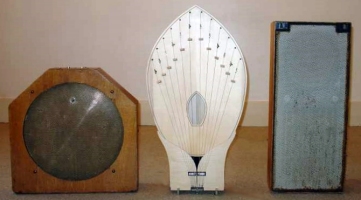

The ondes Martenot "Martenot waves", also known as the ondium Martenot, Martenot and ondes musicales, is an early keyboard-played electronic musical instrument invented in 1928 by Maurice Martenot and available in the 1930's. The original design was similar in sound to the theremin. The sonic capabilities of the instrument were later expanded by the addition of timbral controls and switchable loudspeakers--   (L-R) A small gong is used as the loudspeaker diaphragm to produce a 'halo' effect rich in harmonics, an iconically lyre-shaped loudspeaker, using strings to produce sympathetic resonances and a traditional, large loudspeaker

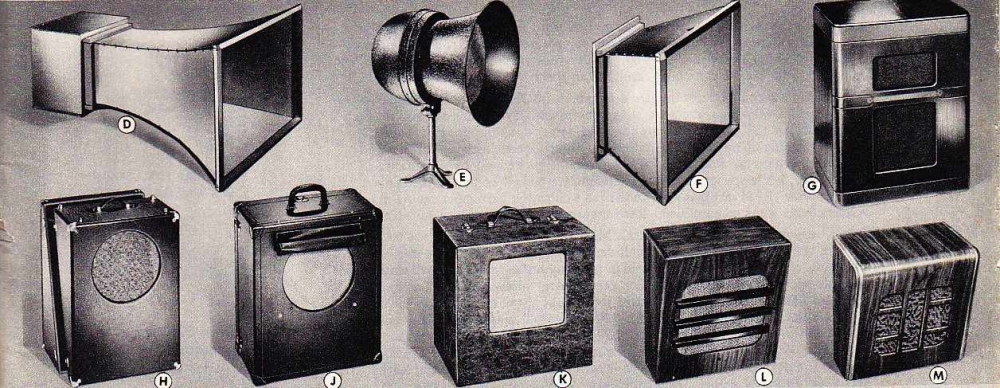

1940's Loudspeakers

1940's

                                              1950's


                      Acoustic Suspension by Acoustic Research 1954               University Loudspeakers 1950's                               1959 Radio Shack Nova 1


1950's Electrostatic Loudspeakers--  Excellent sound but with LOW Sound Pressure Dynamics, sensitivity to ambient humidity levels and a lack of bass response due to phase cancellation from a lack of an enclosure.





Fisher XP Series Loudspeakers from 1971
are representative of 1960's - 2000's cabinet style

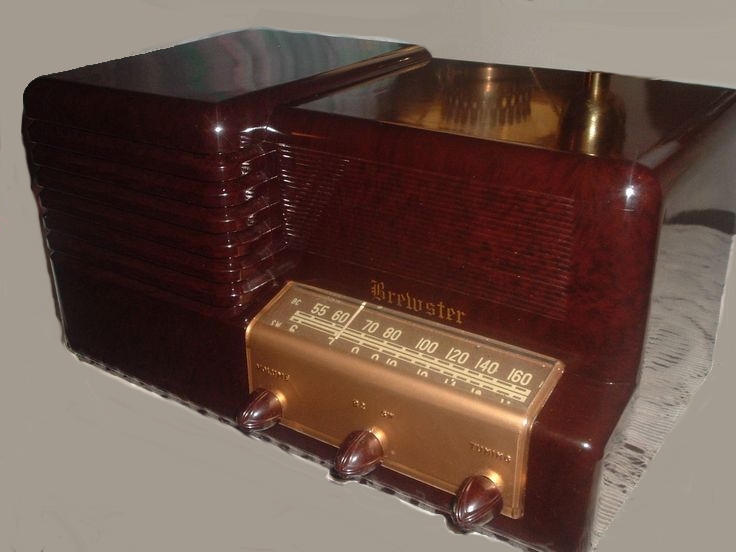

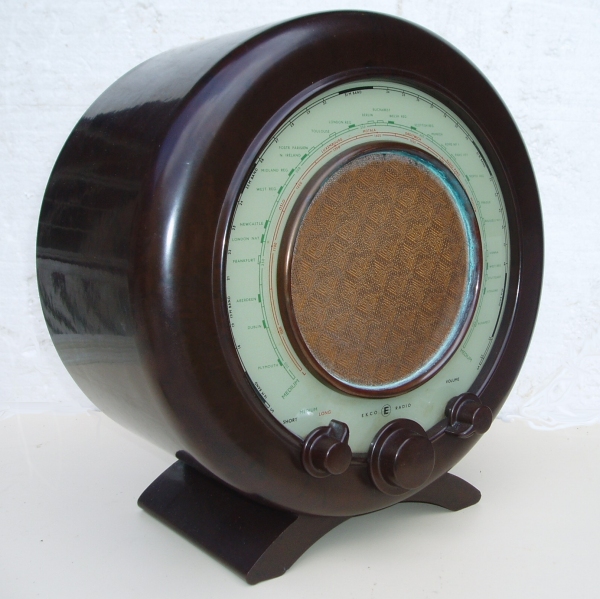

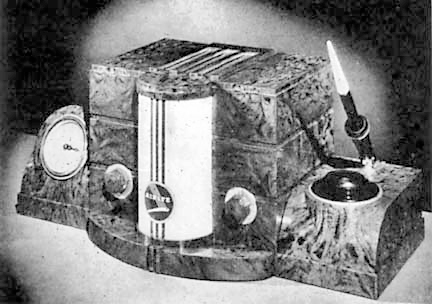

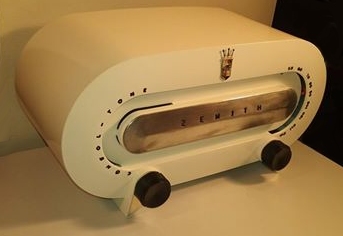

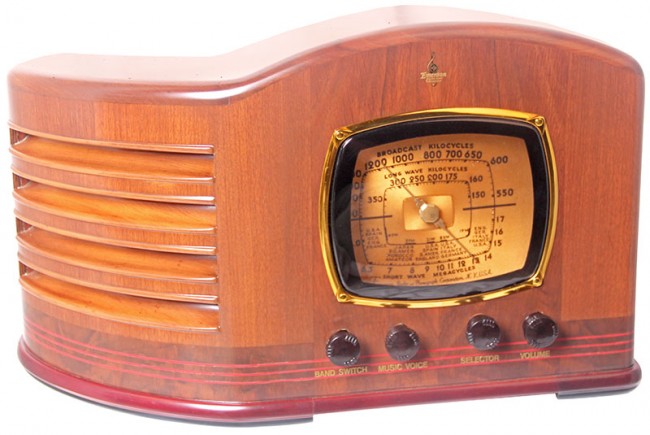

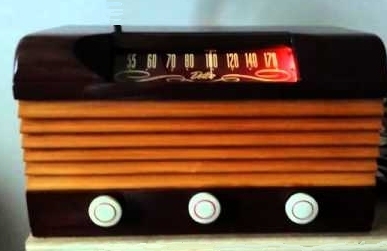

RADIO

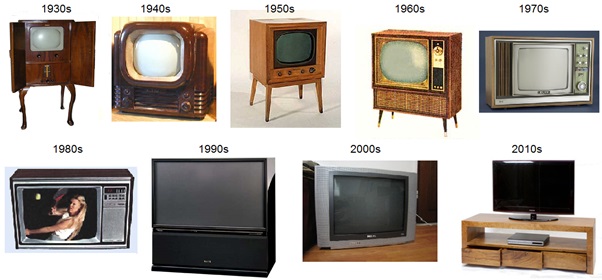

TELEVISION

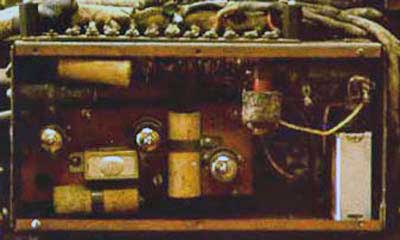

                             1939 RCA TV Camera electronics

                                          1939 RCA TV Camera



                   World's Fair Newscaster 1939                          1939 USA Worlds Fair Television Receiver ExhibitTelevision Broadcast 1939 Worlds Fair

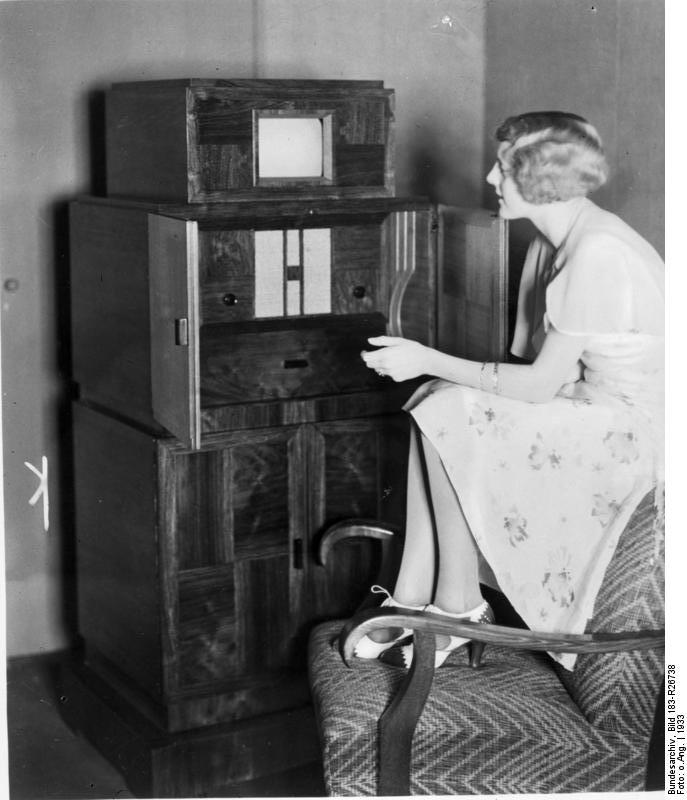

1932 TV in Germany

                     GE Television prototype- 3 inch Screen                                              GE Tabletop                                     GE Televisions

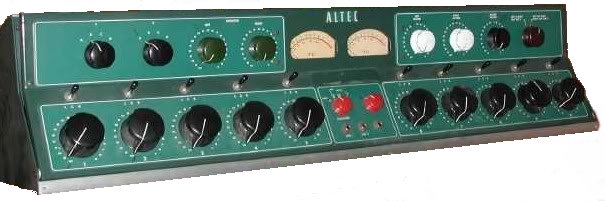

Altec 250 SU

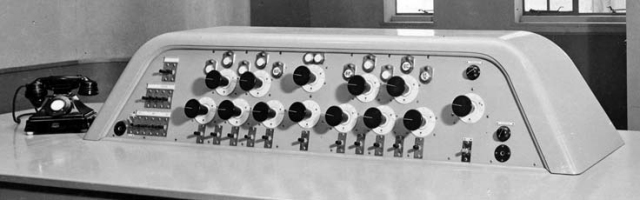

First Mass Produced Mixing Board for Broadcast and Recording
